Specs

Geometry
MLXLXXL
AReach452mm475mm500mm525mm
BStack Height618mm628mm641mm655mm
CStandover Height780mm785mm790mm795mm
DFront Center782mm810mm844mm873mm
EFork Length570mm570mm570mm570mm
FWheelbase1227mm1255mm1289mm1318mm
GChainstay Length445mm445mm445mm445mm
HBottom Bracket Drop29mm29mm29mm29mm
IBottom Bracket Height345.5mm345.5mm345.5mm345.5mm
JEffective Top Tube Length595mm620mm648mm676mm
KHead Tube Angle64.5°64.5°64.5°64.5°
LHead Tube Length105mm115mm130mm145mm
MActual Seat Tube Angle70°70°70°70°
NEffective Seat Tube Angle77°77°77°77°
OSeat Tube Height430mm450mm470mm500mm

Compare Models

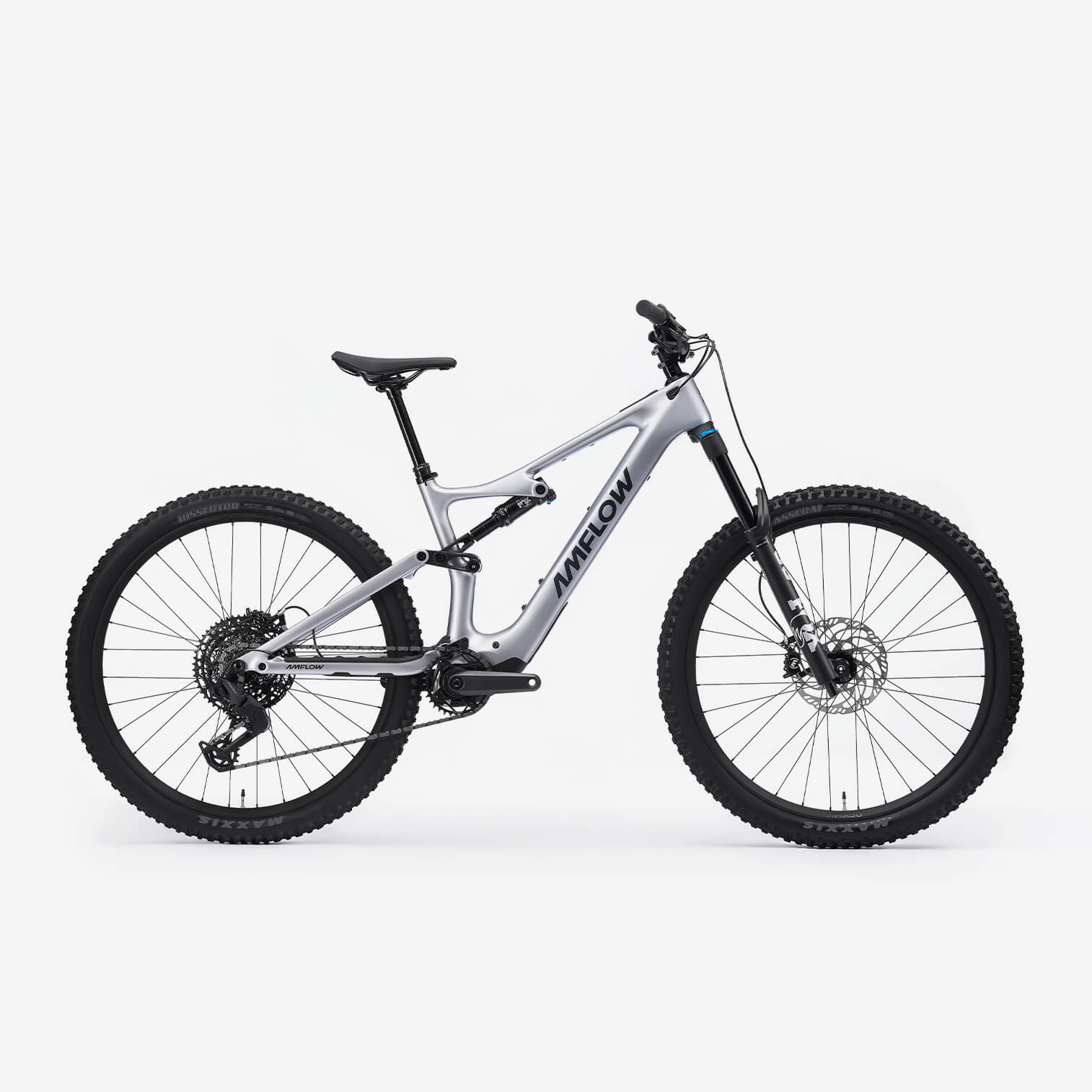

Amflow PL Carbon (800Wh)

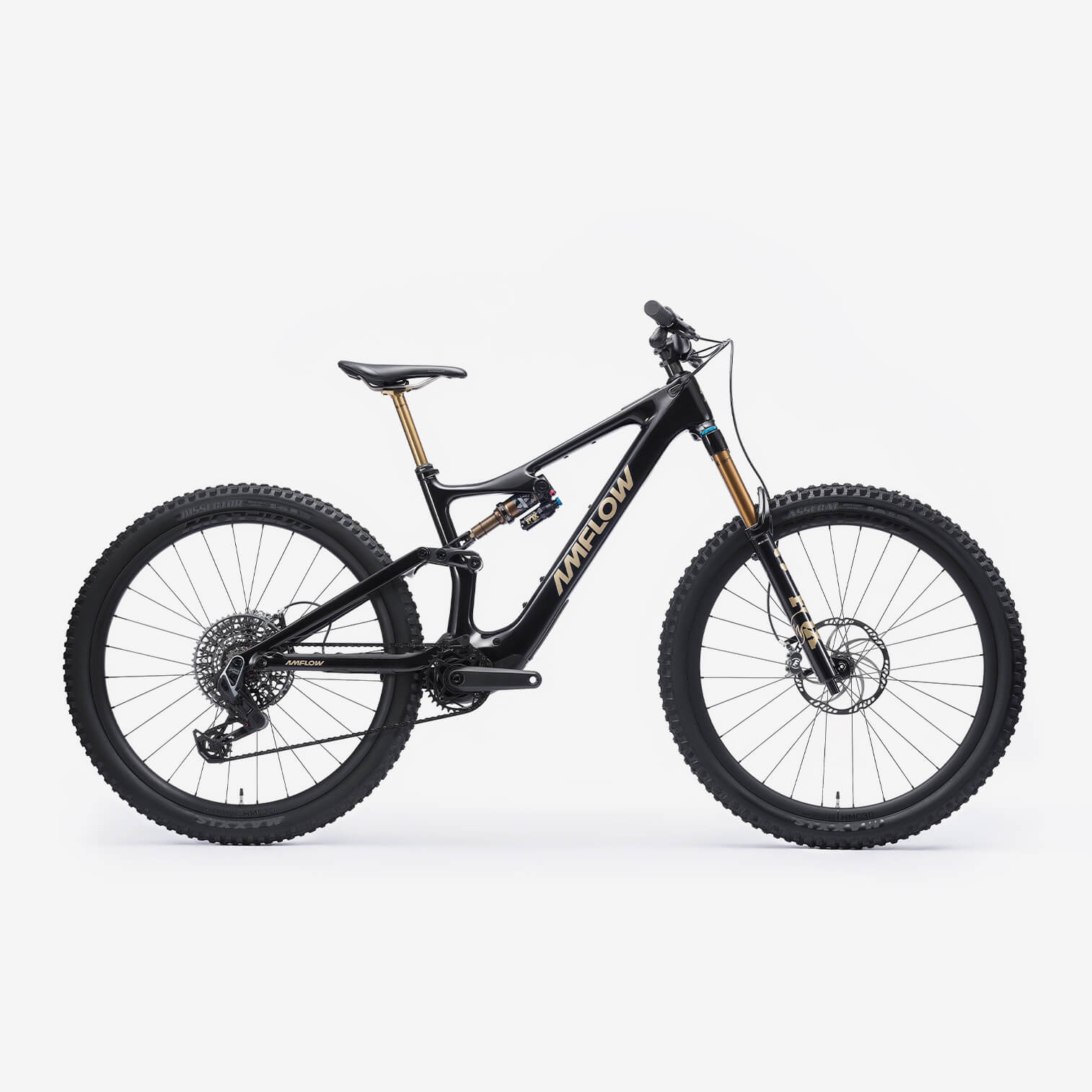

Amflow PL Carbon Pro (600Wh/800Wh)

Amflow PL Carbon (800Wh)

Amflow PL Carbon Pro (600Wh/800Wh)

Amflow PL Carbon (800Wh)
Amflow PL Carbon Pro (600Wh/800Wh)

Frame

Amflow PL Carbon Frame

Amflow PL Carbon Frame

Satin Silver

Cosmic Black

150mm rear travel

150mm rear travel

Compatible with 27.5" and 29" rear wheels

Compatible with 27.5" and 29" rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m

Avinox M1 Drive Unit: 105 N·m

Avinox Screen: 2-inch OLED Control Display

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 800Wh

Avinox Integrated Battery: 600Wh/800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

Avinox Fast Charger: 12A/508W

Rear shock

FOX Float Performance

FOX FLOAT X Factory

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Fork

FOX 36 Performance

FOX 36 Factory

160mm travel, GRIP Damper, 15×110mm, 44mm rake

160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Transmission

Rear Derailleur: SRAM GX Eagle 12-speed

Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM GX Eagle Trigger Shifter|Single Click

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM PG-1230, 11-50T

Cassette: SRAM XS-1295 Eagle Transmission 10-52T

Chain: SRAM NX Eagle

Chain: SRAM X0 Eagle Transmission Flattop Chain

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Wheels

Amflow HMA-30

Amflow HMC-30

Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready

Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready

Spokes: SAPIM E-Light J-bend

Spokes: SAPIM E-Light Straightpull

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Alloy Handlebar

Amflow Enduro Carbon Handlebar

35mm rise, 800mm wide

25mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep

5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Length: 35mm

Clamping diameter: 35mm

Clamping diameter: 35mm

Saddle

Selle Royal SRX Plus

Ergon SM PRO M/L

Seatpost

KS Rage-i

Fox Transfer Factory, Travel adjustable in 5mm

M: 150mm

M: 125-150mm

L: 170mm

L/XL: 155-180mm

XL/XXL: 190mm

XXL: 180-210mm

Accessories

Quick Start Guide

Quick Start Guide

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Shock Pump

Shock Pump

Front and Rear Lights

Front and Rear Lights
