Carbon vs. Aluminum eMTB: The 2026 Frame Material Guide

AMFLOW

09/04/2026

In mountain biking, few debates have lasted as long—or been as polarized—as Carbon Fiber vs. Aluminum. For years, we obsessed over grams, argued about stiffness, and worried about metal fatigue. But the electric mountain bike (eMTB) has rewritten the rules of this conversation.

When you bolt a motor and battery into a chassis, the physics change. Does saving 600g on a frame matter when you have a 120N·m drive unit assisting you? When you’re pushing a bike that weighs 20kg+, does the material really change the ride feel?

The answer in 2026 is yes, but not for the reasons you might think. It’s no longer just about static weight on a scale. It’s about structural integration, handling precision, and thermal management.

This guide cuts through the marketing noise. We’re looking at molecular differences, real-world trail dynamics, and how modern engineering has blurred the line between "lightweight" and "full power" to help you decide which backbone belongs on your next bike.

In This Article

The Science: It’s All in the Grain

To understand why a bike feels the way it does in a rock garden at 30km/h, you have to look at how it’s built at a microscopic level.

Aluminum Alloy: The Isotropic Workhorse

When we talk about "alloy" frames, we’re talking about 6061 and 7005 series aluminum. These are mixed with magnesium, silicon, and zinc to boost strength.

• Predictable Strength: Aluminum is isotropic. That’s a fancy way of saying it has the same strength and stiffness in every direction. If you cut a square out of a downtube, it’s just as strong vertically as it is horizontally. This makes it reliable and consistent, but it limits how much an engineer can "tune" the ride feel without physically changing the tube shape.
• Hydroforming: Gone are the days of straight, round scaffolding tubes. Through hydroforming (using high-pressure hydraulic fluid to shape metal), manufacturers can create complex shapes and triple-butted tubes—thick at the welds for strength, paper-thin in the center to save weight. But metal has limits; push the shape too far, and it fatigues or tears during manufacturing.

Carbon Fiber: The Architect’s Material

Carbon isn't a metal; it’s a composite. It’s strands of carbon atoms suspended in epoxy resin.

• Programmed Performance: Unlike metal, carbon is anisotropic. It’s incredibly strong along the fiber, but pliable across it. This is its superpower. It lets engineers program the frame’s behavior. By changing the Layup Schedule (the direction the fibers are laid), they can build a bike that is stiff as a board when you pedal, but compliant enough to absorb vertical hits.
• Modulus Blending: The best frames in 2026 use a mix. High Modulus fibers are light and stiff but brittle. Intermediate Modulus fibers are tough and impact-resistant. The art is in the blend: protecting the downtube from rock strikes with tough fibers while shaving weight off the top tube with high-modulus sheets.

The "e"Factor: Why It’s Different for eMTBs

On a traditional bike, carbon is mostly about weight. On an eMTB, the frame has a harder job: it’s an exoskeleton for a battery, a mount for a high-torque motor, and a heat sink.

Weight: Static vs. Dynamic

A carbon eMTB frame saves roughly 500g to 800g over alloy. On a heavy e-bike, that sounds negligible. But experienced riders know that dynamic weight (how the bike feels in motion) matters more than the number on the scale.

• Center of Gravity: Carbon manufacturing allows for complex internal channels, letting engineers seat the battery lower in the downtube. This drops the Center of Gravity, making the bike feel "flickable" rather than top-heavy.

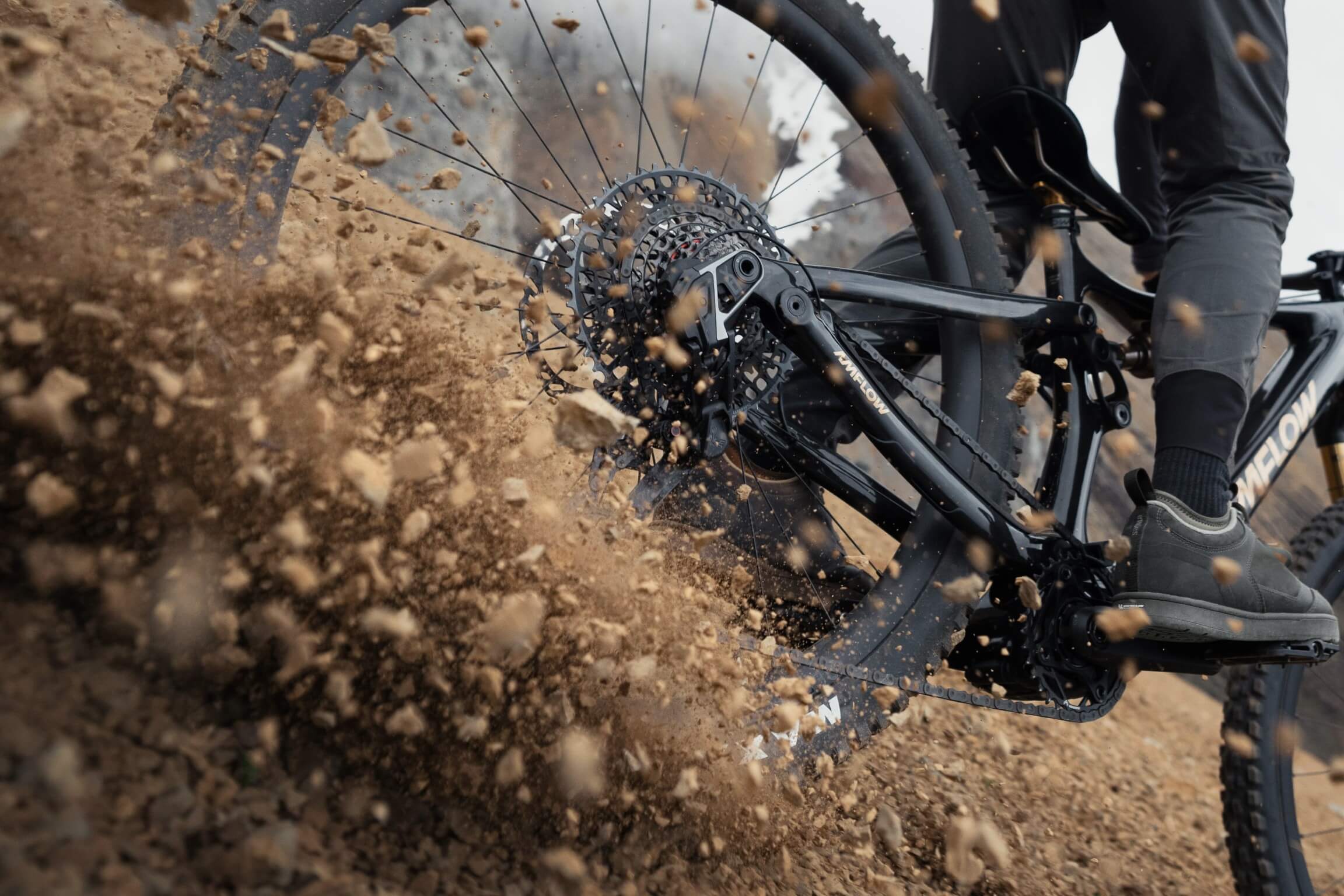

• Unsprung Mass: This is critical. A carbon rear triangle is lighter than an alloy one. Less weight on the swingarm means your suspension can react faster to rapid-fire bumps. This keeps your tire glued to the dirt, giving you better traction when climbing or braking.

Integration & Heat

• Aluminum: Metal conducts heat well, helping cool the motor. But cutting a hole in an alloy tube for a battery weakens it significantly. To compensate, engineers have to reinforce the tube, often making it bulky and heavy.
• Carbon: Carbon allows for complex airflow design. Engineers can mold intake ports directly into the headtube to channel air over the motor. More importantly, they can create a seamless, ultra-stiff motor interface that handles the instant torque without the "bolted-on" feel of some alloy frames.

Ride Feel: The Truth on the Trail

Data sheets are fine, but how does it feel when you drop in?

The "Buzz"vs. The "Mute"Button

• The Alloy Feel: Aluminum is often described as "lively" or "raw." Because of its density, it transmits more high-frequency vibration (trail chatter) to your hands.
• The Upside: Incredible feedback. You know exactly what your tires are doing.
• The Downside: Fatigue. On a 3-hour ride, that constant vibration adds up to arm pump and exhaustion.
• The Carbon Feel: Carbon has natural damping properties. It absorbs that high-frequency chatter before it reaches your handlebars.
• The Upside: It acts like a micro-suspension. On an eMTB, where you’re likely riding further and faster, this saves your energy for the descent.

Precision Under Power

Cornering on an eMTB is violent. You have a heavy bike compressing into a berm, and a motor delivering 85N·m to 120N·m of torque as you exit. If a frame isn't stiff enough laterally (side-to-side), the bike feels vague or "noodly." Carbon allows for massive reinforcement at the bottom bracket without adding weight elsewhere. The result is a chassis that tracks like a laser beam, handling the motor's torque without twisting.

The 2026 Paradigm Shift: Amflow & The End of Compromise

For years, we had a binary choice: Heavy & Powerful or Light & Weak.If you wanted a lightweight eMTB, you had to settle for a small battery and a weak motor. If you wanted power, you rode a tank.

The Amflow PL Effect

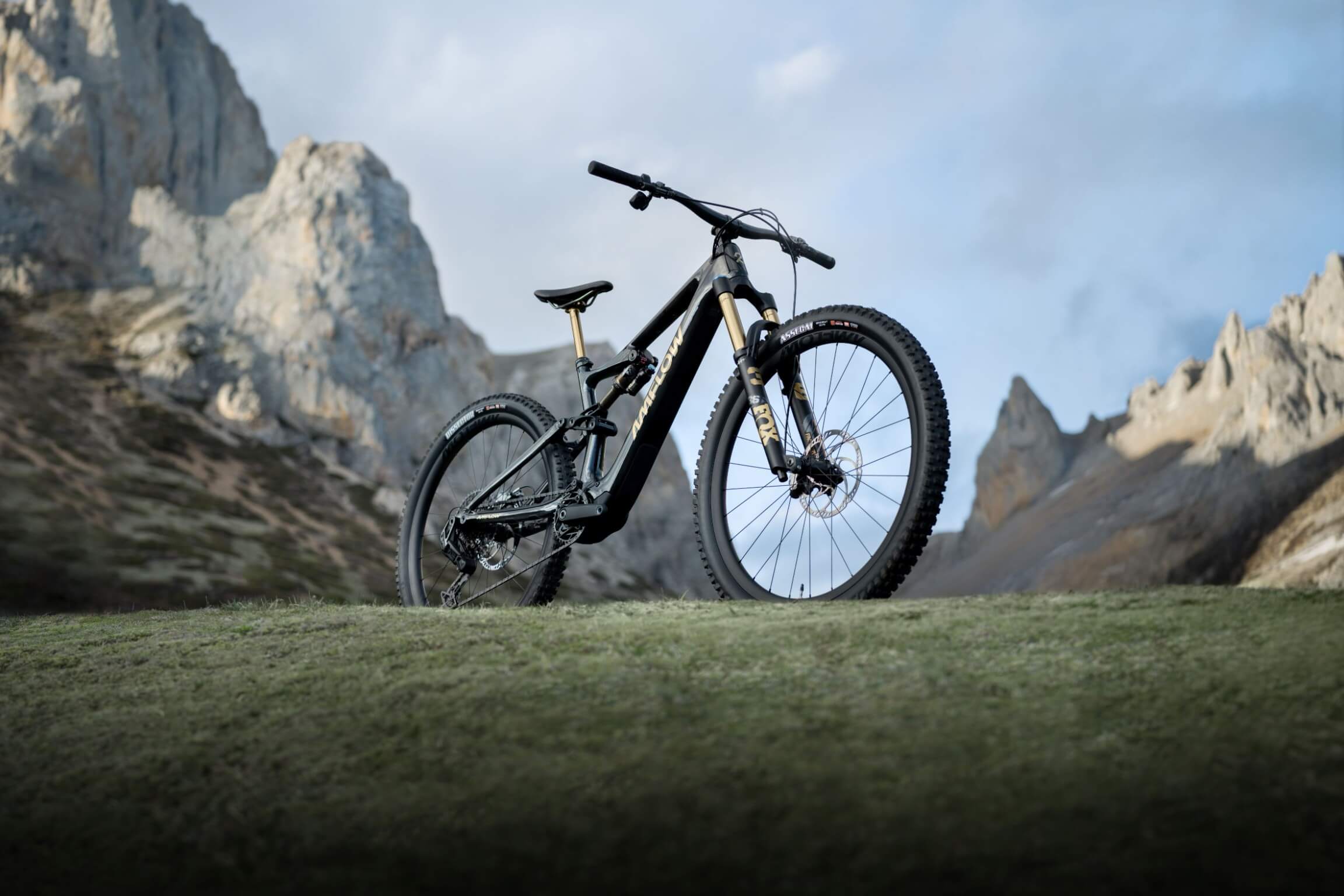

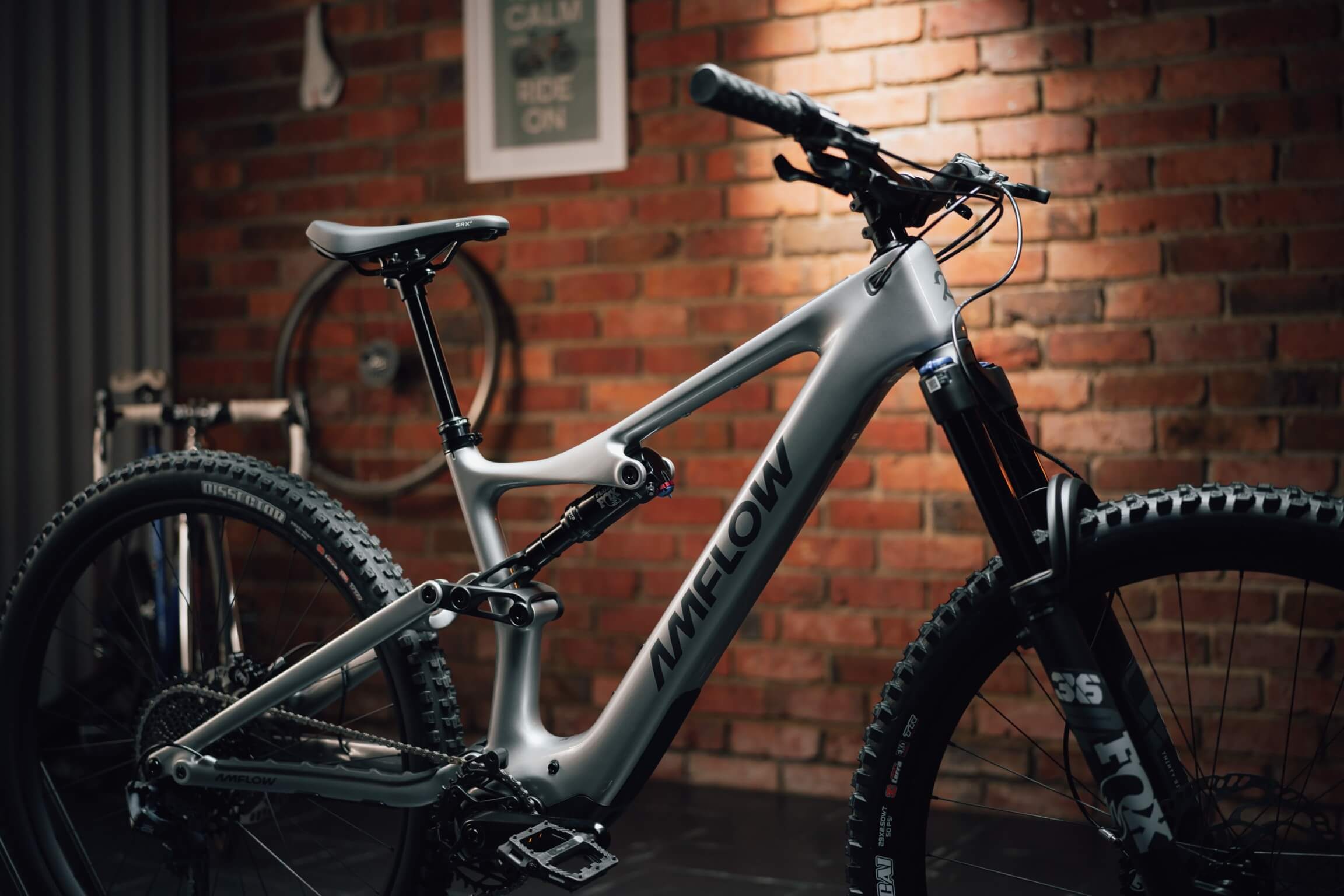

By 2026, bikes like the Amflow PL have dismantled that dilemma. This bike is the case study for modern carbon capability.

Amflow’s engineers faced a physics problem: How do you house the Avinox drive system—which peaks at a staggering 120N·m—in a bike that weighs the same as a low-power "SL" model?

An aluminum frame simply couldn't handle that torque-to-weight ratio. To resist the twisting force of 120N·m, an alloy frame would need so much reinforcement it would become too heavy. Using advanced FEA (Finite Element Analysis) and carbon layup optimization, Amflow built a structure that is:

• Rigid enough to harness Super-Power torque without flex.
• Light enough to compete with low-power bikes.

This is the definition of a "Super eMTB." It proves that high torque doesn't require a heavy bike anymore—it just requires smarter materials engineering.

Durability: The Crack vs. The Fatigue

Aluminum (The Dent): If a rock smashes your downtube, alloy will dent. It’s ugly, but often structurally safe to ride home. However, alloy has a finite fatigue life. Over 5–10 years of hard riding, the metal "softens" and eventually fails.

Carbon (The Crack): Carbon is brittle. A sharp, massive impact can crack it. Once cracked, it’s done. But modern frames are overbuilt with impact-resistant resins and integrated armor.

The Secret: Carbon has an infinite fatigue life. If you don't crash it, a carbon frame will be just as strong in 2036 as it is today. Plus, carbon is surprisingly repairable. A specialist can fix a crack and restore full strength; you can't say the same for a cracked weld on an alloy frame.

Conclusion: Choose Your Ride

The gap is narrowing, but the distinction is still there.

Stick with Aluminum if:

You ride jagged, rocky terrain: If you crash into rocks constantly, the dent-resistance of alloy offers peace of mind.

Budget is King: You’d rather spend your money on top-tier suspension and brakes (which arguably improve the ride more than frame material) than on a fancy chassis.

You want raw feedback: You prefer a bike that feels metal, communicative, and alive.

Invest in Carbon if:

You want the "Super eMTB" experience: If you want the power of the Amflow PL/the Avinox system in a lightweight package, carbon is the only material that makes the physics work.

Handling is everything: You want precision steering and a bike that goes exactly where you point it.

You ride long: The vibration damping keeps you fresh for that final lap.

Longevity: You want a frame that won't fatigue and soften over the years.

In 2026, aluminum is the robust, pragmatic choice. Carbon is the high-performance instrument. Both will get you up the mountain—only one changes how you feel on the way down.
